Thursday, 7 November 2013

ODI11g - A silent evolution in Version Management? (3/3) - Using "Smart Exp-Imp"

A silent evolution in VersionManagement(3/3)
ODI11g - A silent evolution in Version Management? (3/3) - Using "Smart Exp-Imp"

Fig.01. Exporting the source objects specifications into .xml file

In ODI 11g ...

I had the pleasure to discover the Smart-Export / Smart-Import process.

I must admit, I had to search for it.

This new feature was hidden in the documentation and the "What's new in" document was not providing the attention it deserved.

As shown in Fig.01., clicking the button of the Designer Navigator under the "Export" command, one could discover the "Smart" export feature.

The same "drag and drop" movement would be applied as for the "Solution" to build a consistent set of source code for a given project.

The "principal element" usually a project is pulled into the Smart Export window and the 'Objects to be exported' area and then the procedure collects all the required elements using the known dependencies.

As you may see in Fig.02., shared Models, shared Global Objects are collected together with ...

the 'Topology specifications stored as you known in the Master Repository.

The Logical architecture as well as the Physical Architecture info is picked up  (ie: added properties to Data Servers, the connection information to the Development data sources and target, ...)

The last may be useful when for instance the url specifications have changed and you would need to test your fix or correction in the same configuration as in Production.

Remember, for the "Solutions" one will use the current connection information which might no longer be the same as in Production.


The end result is a complete set that may then be reloaded in a stand-alone, empty Master & Work set of repositories.

Fig.02. the assembled set of objects and specifications

Fig.03.Smart Import into an empty set of Repos.

The developer may then quickly using a local Oracle instance to create a temporary "Hot-Fix" environment without being dependent on a DBA who manages the central set of repositories.


Your .xml file may be saved into a central SCM / ALM solution.

You may even think about having a dedicated naming convention like:


Depending on your target set of repositories:

an existing Master with an empty Work repository,

an set of empty Master and Work repository,

the developer will have the choice to specify which of the Master specifications she/he wants to keep.

Further, as you may notice, the Smart Import process will guide you to fix any issue detected with the set of source specifications.

Fig.04.Smart Import - Controls and Options

Personally, I found this process really "smart" and this feature is still currently my favorite option to keep a version of my project code because of its performance versus the "Solutions" option, the available logging/trace during the export step, the autonomy and flexibility it offers afterwards.

ODI11g - A silent evolution in Version Management? (2/3) - Using "Solutions"

A silent evolution in VersionManagement(2/3)
ODI11g - A silent evolution in Version Management? (2/3) - Using "Solutions"

Back to Sunopsis V4 and later ODI10g ...

when an ODI developer wanted to keep a copy of the source her/his project - keeping in mind the usual Projects - Models approach implemented by the tool - not forgetting the "Global Objects" that could be shared by all Projects - she/he was left with the option of making a full copy/export of the Work Repository and to be completely safe of the Master repository also.

The "Solution" concept was still in an embryonary stage and the modus operandi was such that it could only be used for small project (low number of objects in the project).

Fig.01. Projects - Models

Fig.02. Global Objects

(may be shared or used in projects)

In ODI 11g ...

the "Solution" feature further leveraged the ODI versioning feature that enabled a developer keeping copies of specific objects like  "procedure",  "variable" as a "version" object (kept in a table of the Master repository) independently of any other related object in the Work Repository.

Fig.03. Solution (creating a new container)

The Solution container is eventually built as a set of version objects (re-used when they already exist and are current, created when missing in the Master repository table) for all objects (in case of a Project : Interfaces, Procedures, ...) belonging to the main object (Principal Element) dragged and dropped in the "Solution" container and  to the related objects of the Principal Element (shared Models, Variables, ...)

Fig.04 Solution container named Blog_Example


Fig.05. above: objects the developer wants to source safe

Fig.06. right:    objects automatically pulled in the solution


Once, the "Solution" has been assembled, it may be shared between all the Work Repositories bound to the (same) Master Repository wherein the version objects have been collected.


In Fig.07, we see a brand new created work repository, still empty. Though, we see the "solution" in the Designer Navigator.

The "Solutions" objects are in fact an exception in this GUI sub-part (their specifications are stored in the Master Repository) since specifications of all other objects  visible in the Designer Navigator are stored in a Work Repository. .


A usual situation will then be to reverse the 'archived' source of a project into an empty Work Repository in order to bring a 'hot fix' to the code.

The developer import the source code from the Master in this empty Work Repository for the purpose.


It is also possible to export a solution into an xml file.

In the next post, we will see how it goes with Smart Export-Import ... I must admit now my favorite!

Fig.07 a 'target' empty Work repository ready for HotFixing






Sunday, 17 February 2013

ODI11g - A silent evolution in Version Management? (1/3)

Oracle Data Integrator 11g - Version Management
Oracle Data Integrator 11g - A silent evolution in Version Management? (1/3)

Version Management with Sunopsis and later ODI has not always been a straigthforward exercise especially when one wanted to externalize a project version to keep this source code together with other pieces of source codes belonging to the same release wave in a third party application dedicated to serve this purpose (ie: StarTeam, ...)


Usually ETL solutions implement a "Project based approach" to support the development around a functional subject.

Hence, developer 1 will create his/her project, reverse engineer the data container definitions (files, tables, messages) he/she would have to work with and then he/she would start developing the integration components.

All these data container objects will belong to a "project".

Developers 2, 3 would do the same and might actually at some point in time have to interact with the same objects (let us take the usual case of a table).

Since they would all reverse this object into their own "project" the table's metadata would exist 3 times in their development platform, one time in each project, hence 3 times if we have 3 project/developers working.

This configuration will high probably lead to a situation at one point in time where all these objects (the source object in the database, the 3 metadata representations in the ETL solution) will no longer be synchronized.

Further, from a 'change impact' perspective, these many representations of a single object (our table) might lead to difficulties in evaluating the impact of a change to this object (finding all the project components touching or interacting with it).

There are 'to do's' to manage this.


The ELT-(L) ODI development platform exposes a very specific model or approach.

It leverages the nice concept of naturally enabling sharing the representation of source or target objects.

The 'data container' metadata would exist only once in the ETL solution and would be exposed to each developer for him/her to interact with.

It is then possible to quickly see what are the impacts of a change to this object since all interacting objects (referring to) are exposed as linked to it.


The downsize of this approach would be that the version level of the metadata of this source or target object might no longer be 'in sync.' with the code level in the different projects interacting with it.

As a matter of example:


Developer 1 ended his/her project (code freeze) at T1 but developer 2 used and had to alter the object definition for his/her project that would end later at T2 (T1 point in time earlier than T2 point in time)

When developer 1 has to develop a fix between T1 and T2, he/she will have a problem with the representation of the table since his/her version is in production and the version of his/her colleague will be later (T2) in production so the source or target object definition does no longer have the same definition as at T1.


And the fix has to be made on the original representation of the object.

Till Sunopsis v4, the way to address this was to export the complete Work Repository at project code freeze.

Sunopsis v4 and ODI till version 10g (and early 11g) offered the concept of "solution" to address this aspect of concurrent development. But it had a downsize, it was a good (internal) answer as long as the implemented ETL solution architecture was revolving around a single Master repository to support the different phases of the development cycle (Development, Test, Quality Control, Production). Since the "Solution" approach relies on objects shared between development repositories attached to the same Master.


The request for separated Master Repositories has raised with time and one had to wait until very recently to have working answers to enable exchanging (or exporting) a complete project source code set (mapping, source-target metadata)

In the next parts (2/3, 3/3) of this subject, I shall expose -using the version of ODI- how one may from now on address this request.


Monday, 7 January 2013

ODI11g - Mixing the Security "models" for Authorisations Assignment

ODI 11g - Mixing the Security mo

With Oracle Data Integrator 11g, Oracle extended the Authentication capabilities to be applied to the ODI users.

In this post, we will focus on the Authorisation aspects that Oracle Data Integrator inherited from the Sunopsis era.

In this inherited approach, the ODI application is implementation with several Security Profiles enabling 'Generic' or 'Non Generic' authorisation profiles.

With a 'Generic' profile, the user will have the ability to apply the provided 'methods' to all 'instances' of the object 'class'.

For instance,

when the method 'delete' is provided for object type 'datastore', the user being assigned  this Generic profile will have the ability to apply this method to all datastores.

From an administration perspective, this type of profiles are requiring little effort once the users are created with such profiles assigned to them.


With a 'Non Generic' profile, the user will only have the ability to apply the provided 'methods' to the 'instances' of the object 'class' assigned to him/her by the security administrator.

For instance,

when the method 'delete' is provided for object type 'datastore', the user being assigned  this Non Generic profile will only have the ability to apply this method to datastore 'SRC_ORDERS' that has been added under his/her user definition , Instances node.

From an administration perspective, this type of profiles are requiring more effort once the users are created with such profiles assigned to them.


A logic like "provide ability to apply the method(s) to all objects except some specific ones" is not immediately available.

Nevertheless, in order to alleviate the administration burden of going for the implementation of 'Non Generic' profiles, the security could look for mixing the 2 approaches.

Let's assume several development teams are using the same Work Repository (type Development) and one would like to have each team only operating the objects within a given project.

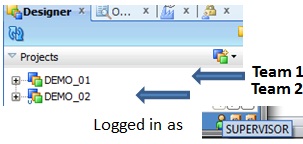

In our example, we have 2 projects (DEMO_01, DEMO_02) and 2 teams materialized by 2 users, where USER01 would belong to Team 01 and USER02 would belong to Team02.


And for each team, one wants them to have full access to the underlying objects in the Project tree.


From an ODI security perspective, this would be translated as:

I want Non-Generic rights for the Project object class and I want Generic rights for all other objects (Interfaces, Packages, Variables, Procedures, ...) under this point in the tree.


In the Security Navigator, we would then in the Profiles part, pick up the existing 'DESIGNER' profile and duplicate it under the name 'DESIGNER_PROJ'.


We would then

 . expand the 'Designer_Proj' profile to

 . locate the 'Project' node , expand it too

and then for each method (assuming we want to kept all methods from the original definition), we would uncheck the [ ] 'Generic Privilege' box on the Definition tab of the methods.


We then, if not done yet add USER01 and USER02 under the 'Users' module.

For each user, we assign - drag and drop - the 'Connect' profile and the newly created 'Designer_Proj' profile to the users.


We then move the 'Security Navigator' (clicking on the icon on the header bar) from the menu (for us on the left side of the ODI Studio) over the Workspace area in order to have both the Designer Navigator (left in the menu) and the Security Navigator (right in the workspace) visible.


We then drag and drop the project instance 'DEMO_01' onto the 'USER01' node in the Security Navigator.

We are asked to confirm granting this project to this user, what we do.

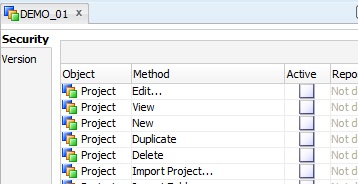

A window is then automatically open in the workspace for you to activate the methods for this object's instance.

Your may choose between 3 possibilities:

 . Allow all methods in all repositories

 . Deny all methods in all repositories

 . Allow all methods in selected repositories

For this example, we 'Allow all methods in all repositories'.

We may then disconnect and (re)connect as USER01 to have a try at the behaviour.

The users (as shown on Fig. ) were also assigned the complementary - and original - profile 'METADATA_ADMIN'. This profile provides a 'Generic' View method on the 'Project' class.


We duplicated the profile 'METADATA_ADMIN' to create a  profile 'METADATA_ADMIN_MODELS' without View method on Project and replaced the Metadata profiles on users with the newly created one.


The complete users' profile settings would not be completed at this stage.

Nevertheless, as a matter of conclusion,

this demonstrates that there are plenty of configurations available (not out of the box unfortunately) in order to mitigate Security requirements and administration burden.
